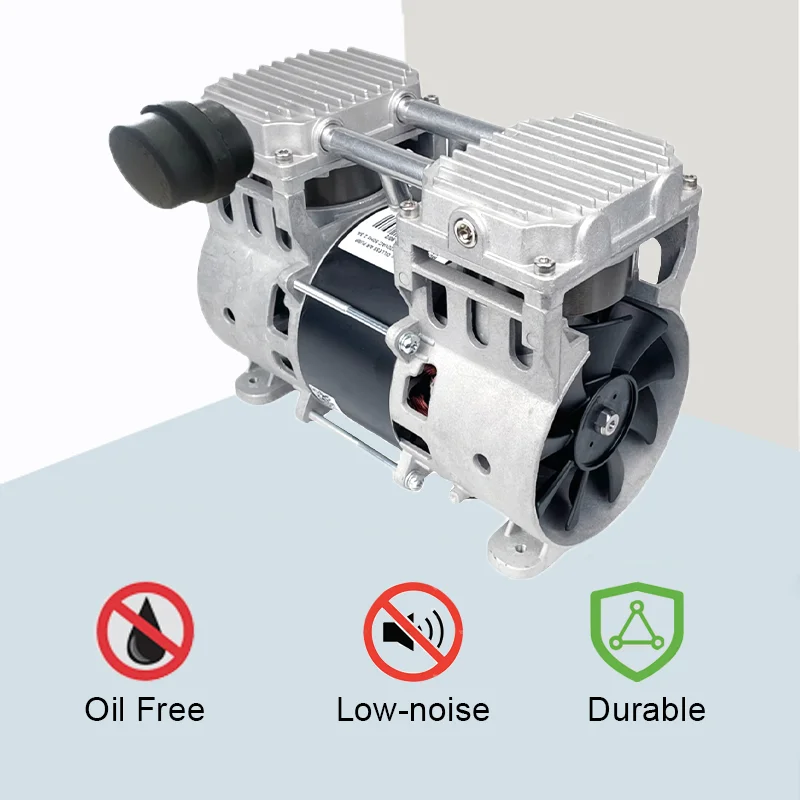

The Oil-Free 220V 100L/Min 380W Pump is an essential tool for dental and medical equipment that require a reliable source of air vacuum. This pump is designed to be oil-free, which means it requires little maintenance and has a longer lifespan, compared to traditional oil-based pumps.
The pump operates on a 220V voltage and has an air flow rate of 100L/Min, making it capable of handling heavy-duty tasks such as suctioning fluids during dental procedures. The powerful 380W motor ensures fast and efficient operation, while the durable construction of the pump guarantees longevity.
The Xunwande Oil-Free Pump is versatile, as it can be used in a variety of applications. It is ideal for dental clinics, medical laboratories, and pharmaceutical industries, where the need for clean, oil-free air is essential. The compact and lightweight design of the pump allows it to be easily transported, making it convenient for mobile medical services.
The pump features a reliable AC air vacuum system that provides consistent suction power, ensuring that your equipment runs smoothly. The Xunwande noise level of the pump is also significantly reduced due to its quiet operation, making it ideal for use in dentist offices and other medical facilities where noise can be a concern.
The Xunwande Oil-Free Pump was designed with safety in mind. It has an automatic shut-off feature that triggers in the event of a malfunction, preventing damage to your equipment and ensuring the safety of users. The pump also includes a filter system that prevents contamination, ensuring that the vacuumed air is clean and free from harmful particles.
the Xunwande Oil-Free 220V 100L/Min 380W Pump is a top-of-the-line product that offers powerful, reliable, and safe suction power for your dental and medical equipment. This pump is a must-have for any medical professional who demands high-quality suction power. Trust the Xunwande brand to provide you with a pump that will help you get your job done efficiently.

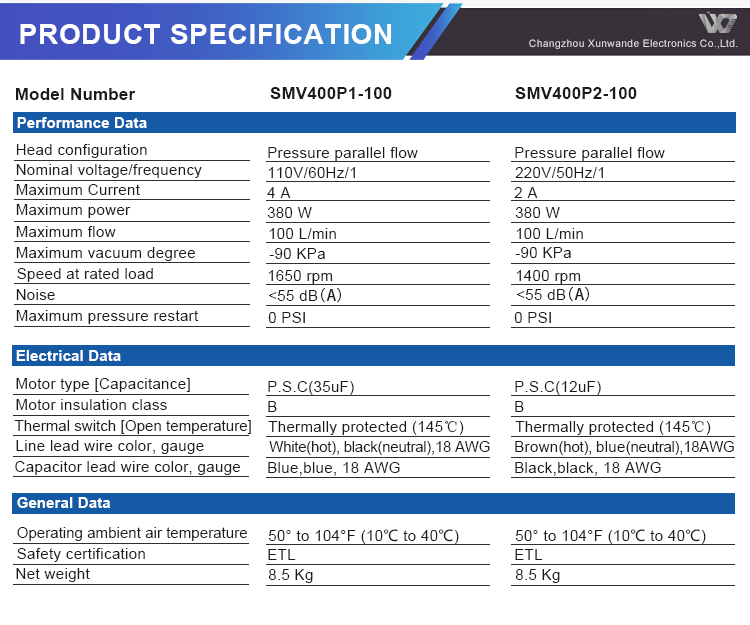

Performance Data | ||||
Head configuration | Pressure parallel flow | Pressure parallel flow | ||
Nominal voltage/frequency | 110V/60Hz/1 | 220V/50Hz/1 | ||
Maximum Current | 4 A | 2 A | ||
Maximum power | 380 W | 380 W | ||
Maximum flow | 100 L/min | 100 L/min | ||
Maximum vacuum degree | -90KPa | -90 KPa | ||
Speed at rated load | 1650 rpm | 1400 rpm | ||
Noise | <55 db=""> | <55 db=""> | ||
Maximum pressure restart | 0 PSI | 0 PSI | ||
Electrical Data | ||||
Motor type [Capacitance] | P. S. C(35uF) | P. S. C(12uF) | ||
Motor insulation class | B | B | ||
Thermal switch [Open temperature] | Thermally protected(145℃) | Thermally protected(145℃) | ||
Line lead wire color, gauge | White(hot) black(neutral) 18AWG | Brown(hot), blue(neutral) 18AWG | ||
Capacitor lead wire color, gauge | Blue, blue, 18 AWG | Black, black, 18 AWG | ||
General Data | ||||
Operating ambient air temperature | 50°to 104°F(10℃ to 40℃) | 50°to 104°F(10℃ to 40℃) | ||
Safety certification | ETL | ETL | ||
Net weight | 8.5 Kg | 8.5 Kg | ||
FAQ |
01 Are you manufacturer or trading company? |
We are a multi-specialty supplier, located in Changzhou city, Jiangsu province andSuqian city, Jiangsu province. |
02 Can we use our own Logo and design? |
Yes, we supply OEM service and customized design, DIY your carton and put your logo or brand on the compressor. We'll provide 100%qualified products to support your brand. |
03 Can I buy the sample to test? |
We are pleased to send the samples for your evaluation, And the samples cost can be refundable when your order is bulk order. |
04 Do you have test records of every pump? |
We will inspect products three times before shipment and every pump have the test records. We will keep these test records to our quality traceability system about 3-5 years. |
05 To ask a quote, what information should I provide and when will i get it? |
Please offer the product type, quantity and specification of the products such as voltage, power, air tank capacity and etc. Then we will reply your inquiry within 2-3 hours. |
06 Do you sale the accessories of the compressor? |
Yes, We provide bearing, cup seal capacitor and etcPleasae feel free to contact if there's additional you needs. |
