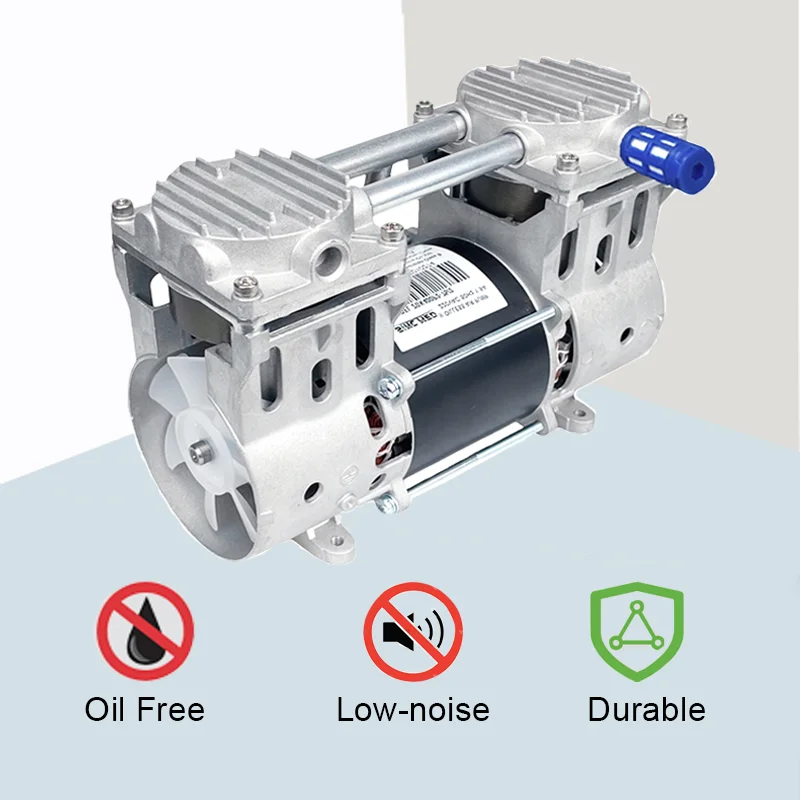

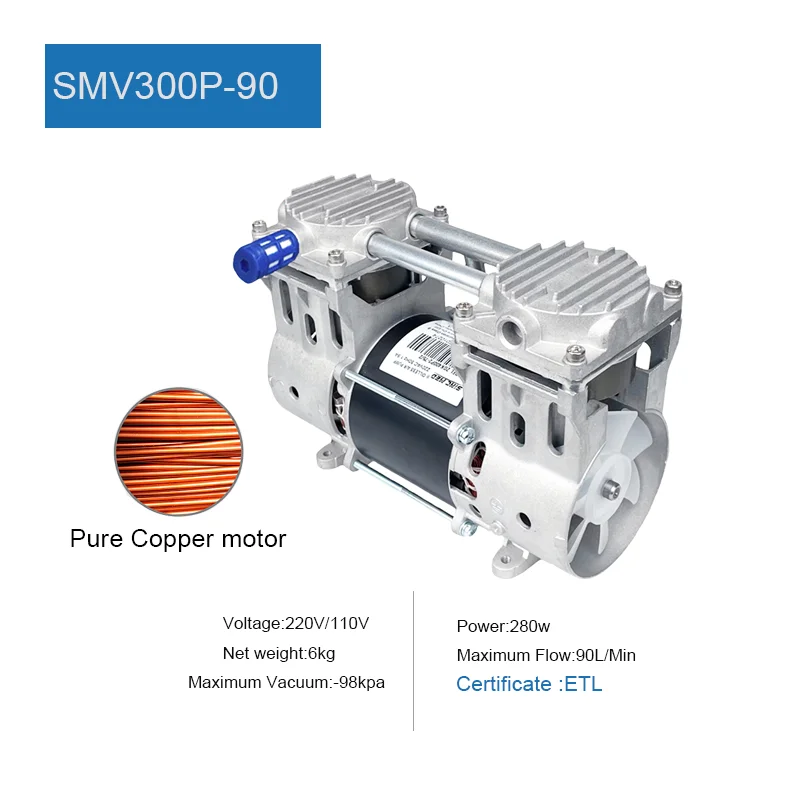

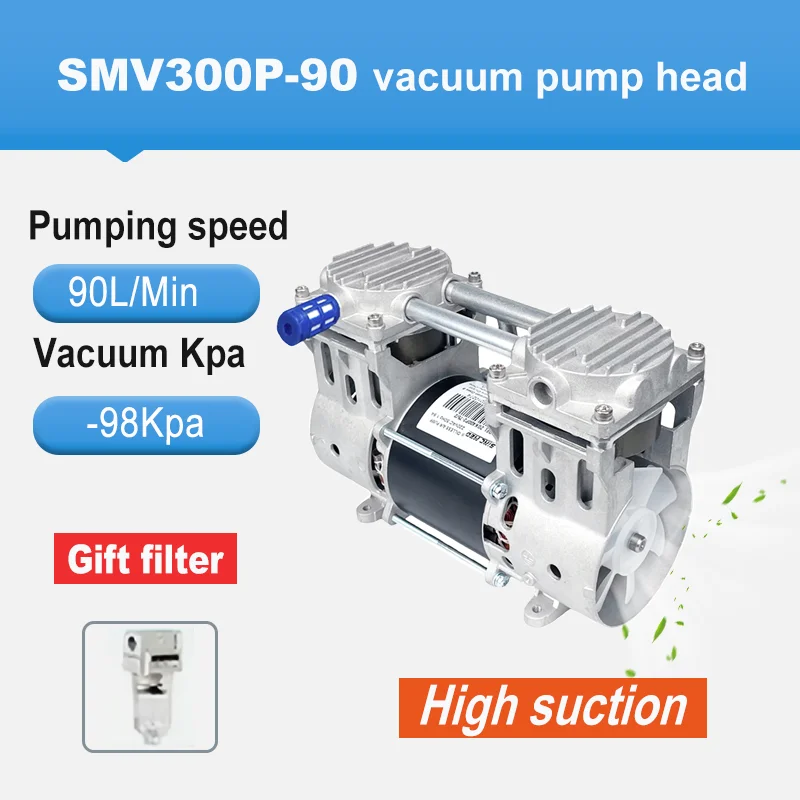

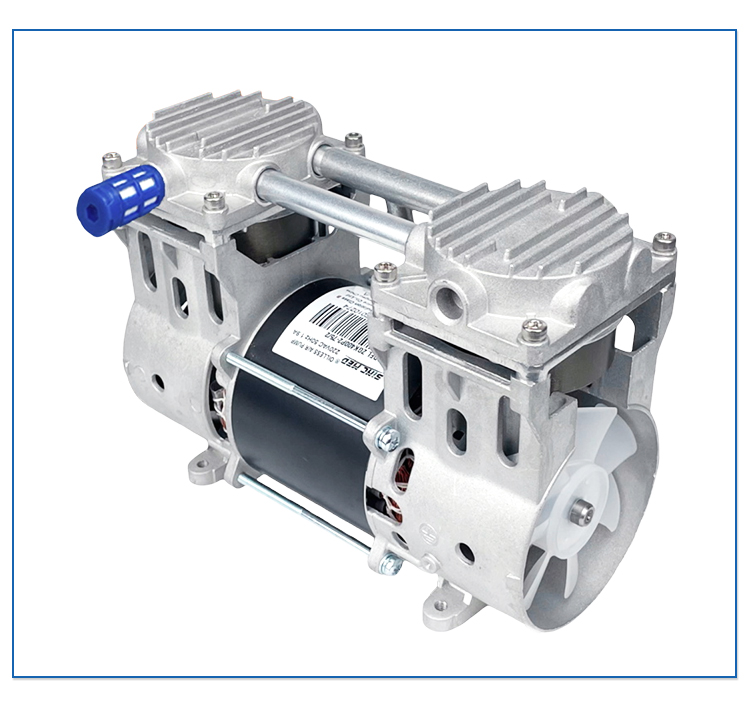

The Lab use 90L/Min Single Stage Oil Free Vacuum pump SMV300P is the perfect product for all your medical needs. This product is designed to be oil-free, ensuring there are no contaminants in your laboratory. The SMV300P is also a single-stage pump, making it more efficient than other pumps on the market. With a flow rate of 90 liters per minute, it is the perfect size for smaller laboratories or medical facilities.
The oil-less design of this vacuum pump makes it a great choice for medical procedures. With no oil in the pump, there are no contaminants to worry about. This means you can use it for procedures where contamination is a concern. The pump also runs at a quiet 53 decibels, making it ideal for use in research environments where noise levels need to be kept to a minimum.
The Xunwande Lab use 90L/Min Single Stage Oil Free Vacuum pump SMV300P is easy to use and maintain. It is equipped with a removable filter that can be easily cleaned or replaced as needed. The pump also comes with a pressure gauge that displays the pressure inside the pump, allowing you to keep track of its performance. The Xunwande pump is a breeze to operate with a simple on/off switch on the front panel.
This vacuum pump is designed to last. It is constructed with high-quality materials that are built to withstand daily use in a laboratory setting. The pump is also CE approved, ensuring that it meets safety and quality standards.
The Xunwande Lab use 90L/Min Single Stage Oil Free Vacuum pump SMV300P is an excellent choice for any laboratory or medical facility. It is designed to be both efficient and reliable, making it the perfect addition to any research environment. With its oil-free design, removable filter, and quiet operation, this pump is one of the best on the market. So if you're looking for a high-quality vacuum pump for your laboratory or medical facility, the Xunwande Lab use 90L/Min Single Stage Oil Free Vacuum pump SMV300P is the product you need.

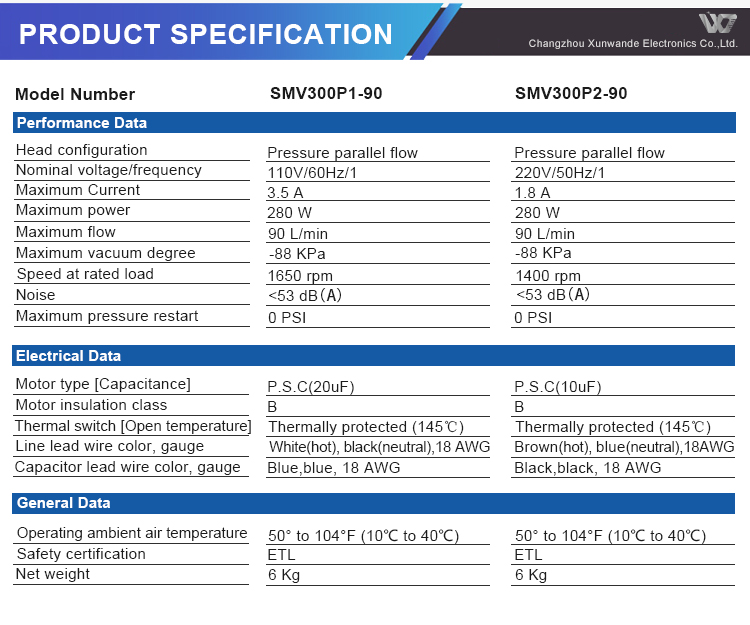

Performance Data | ||||
Head configuration | Pressure parallel flow | Pressure parallel flow | ||
Nominal voltage/frequency | 110V/60Hz/1 | 220V/50Hz/1 | ||
Maximum Current | 3.5 A | 1.8 A | ||
Maximum power | 280 W | 280 W | ||
Maximum flow | 90 L/min | 90 L/min | ||
Maximum vacuum degree | -88KPa | -88 KPa | ||
Speed at rated load | 1650 rpm | 1400 rpm | ||
Noise | <53 db=""> | <53 db=""> | ||
Maximum pressure restart | 0 PSI | 0 PSI | ||
Electrical Data | ||||
Motor type [Capacitance] | P. S. C(20uF) | P. S. C(10uF) | ||
Motor insulation class | B | B | ||
Thermal switch [Open temperature] | Thermally protected(145℃) | Thermally protected(145℃) | ||
Line lead wire color, gauge | White(hot), black(neutral) 18AWG | Brown(hot), blue(neutral) 18AWG | ||
Capacitor lead wire color, gauge | Blue, blue, 18 AWG | Black, black, 18 AWG | ||
General Data | ||||
Operating ambient air temperature | 50°to 104°F(10℃ to 40℃) | 50°to 104°F(10℃ to 40℃) | ||
Safety certification | ETL | ETL | ||
Net weight | 6 Kg | 6Kg | ||
FAQ |
01 Are you manufacturer or trading company? |
We are a multi specialty supplier, located in Changzhou city, Jiangsu province andSuqian city, Jiangsu province. |
02 Can we use our own Logo and design? |
Yes, we supply OEM service and customized design, DIY your carton and put your logo or brand on the compressor. We'll provide 100%qualified products to support your brand. |
03 Can I buy the sample to test? |
We are pleased to send the samples for your evaluation, And the samples cost can be refundable when your order is bulk order. |
04 Do you have test records of every pump? |
We will inspect products three times before shipment and every pump have the test records. We will keep these test records to our quality traceability system about 3-5 years. |
05 To ask a quote, what information should I provide and when will i get it? |
Please offer the product type, quantity and specification of the products such as voltage, power, air tank capacity and etc. Then we will reply your inquiry within 2-3 hours. |
06 Do you sale the accessories of the compressor? |
Yes, We provide bearing, cup seal capacitor and etcPleasae feel free to contact if there's additional you needs. |
