Oilless Vacuum Pumps

High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump

Introduction

Xunwande



Introducing the powerful and efficient High quality silent 150L/min 500W piston vacuum type air tech pump vertical Oilless vacuum pump from This top-of-the-line pump is designed to provide an unparalleled vacuuming experience for users across different industries. With a superior build that can withstand intense usage, this pump is the perfect choice for a range of commercial and industrial applications.



One of the standout features of the Xunwande air tech pump is its ability to deliver consistent suction power. With a powerful 500W piston, it can deliver a maximum airflow of 150L/min, making it a highly efficient solution for large-scale vacuuming tasks. The pump is designed to work silently, ensuring that your work environment remains comfortable and noise-free.



What sets this vacuum pump apart from others in the market is its Oilless design. This means that there's no need for oil changes or frequent maintenance, which can save you time and money in the long run. The pump has a long lifespan, and you can be sure that it will serve you well for years to come, thanks to its durable construction.



The vertical design of the Xunwande air tech pump makes it easy to use and store. It takes up minimal space, making it perfect for small workshops and home garages. The pump is also lightweight, so you can easily move it around your workspace to get the job done efficiently.



The Xunwande air tech pump is a versatile product that can be used for a range of applications. It's perfect for vacuuming air conditioning systems, refrigeration units, and even in laboratories for vacuum filtration. If you're in the automotive industry, this pump can be useful for vacuuming brake systems, power steering, and much more.



In terms of safety, the Xunwande air tech pump comes with a range of safety features, including a thermal overload system that shuts off the motor in the event of overheating. The pump also has a built-in pressure release valve that ensures that it won't exceed the maximum pressure level during operation.



The Xunwande High quality silent 150L/min 500W piston vacuum type air tech pump vertical Oilless vacuum pump is a top-of-the-line product that offers unmatched vacuuming performance. Whether you're a professional mechanic or a DIY enthusiast, this pump is an excellent investment that you won't regret. Trust Xunwande to deliver quality products that meet your needs.




High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump manufacture
High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump factory
High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump supplier
High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump supplier

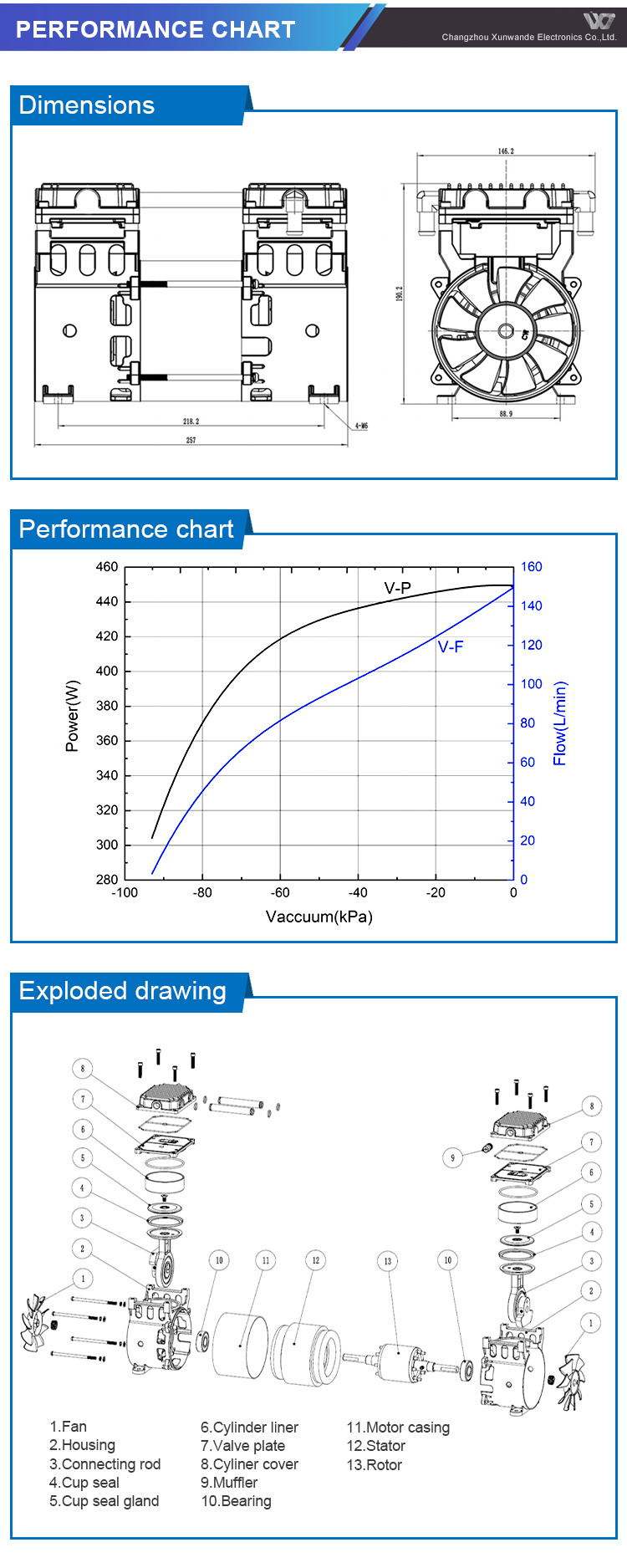

Performance Data
Head configuration
Pressure parallel flow
Pressure parallel flow


Nominal voltage/frequency
110V/60Hz/1
220V/50Hz/1


Maximum Current
6 A
3 A


Maximum power
500 W
500 W


Maximum flow
150L/min
150L/min


Maximum vacuum degree
-92KPa
-92 KPa


Speed at rated load
1650 rpm
1400 rpm


Noise
<58 db="">
<58 db="">


Maximum pressure restart
0 PSI
0 PSI


Electrical Data
Motor type [Capacitance]
P. S. C(35uF)
P. S. C(12uF)


Motor insulation class
B
B


Thermal switch [Open temperature]
Thermally protected(145℃)
Thermally protected(145℃)


Line lead wire color, gauge
White(hot), black(neutral) 18AWG
Brown(hot), blue(neutral) 18AWG


Capacitor lead wire color, gauge
Blue, blue, 18 AWG
Black, black, 18 AWG


General Data
Operating ambient air temperature
50°to 104°F(10℃ to 40℃)
50°to 104°F(10℃ to 40℃)


Safety certification
ETL
ETL


Net weight
10 Kg
10 Kg


High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump manufacture
High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump factory
High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump details
High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump manufacture
High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump factory
High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump supplier
High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump factory
High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump details
High quality silent 150L/min 500W piston vacuum type air tech pump vertical oilless vacuum pump supplier
FAQ
01 Are you manufacturer or trading company?
We are a multi-specialty supplier, located in Changzhou city, Jiangsu province and Suqian city, Jiangsu province.
02 Can we use our own Logo and design?
Yes, we supply OEM service and customized design, DIY your carton and put your logo or brand on the compressor. We'll provide 100%qualified products to support your brand.
03 Can I buy the sample to test?
We are pleased to send the samples for your evaluation, And the samples cost can be refundable when your order is bulk order.
04 Do you have test records of every pump?
We will inspect products three times before shipment and every pump have the test records. We will keep these test records to our quality traceability system about 3-5 years.
05 To ask a quote, what information should I provide and when will i get it?
Please offer the product type, quantity and specification of the products such as voltage, power, air tank capacity and etc. Then we will reply your inquiry within 2-3 hours.
06 Do you sale the accessories of the compressor?
Yes, We provide bearing, cup seal capacitor and etcPleasae feel free to contact if there's additional you needs.
