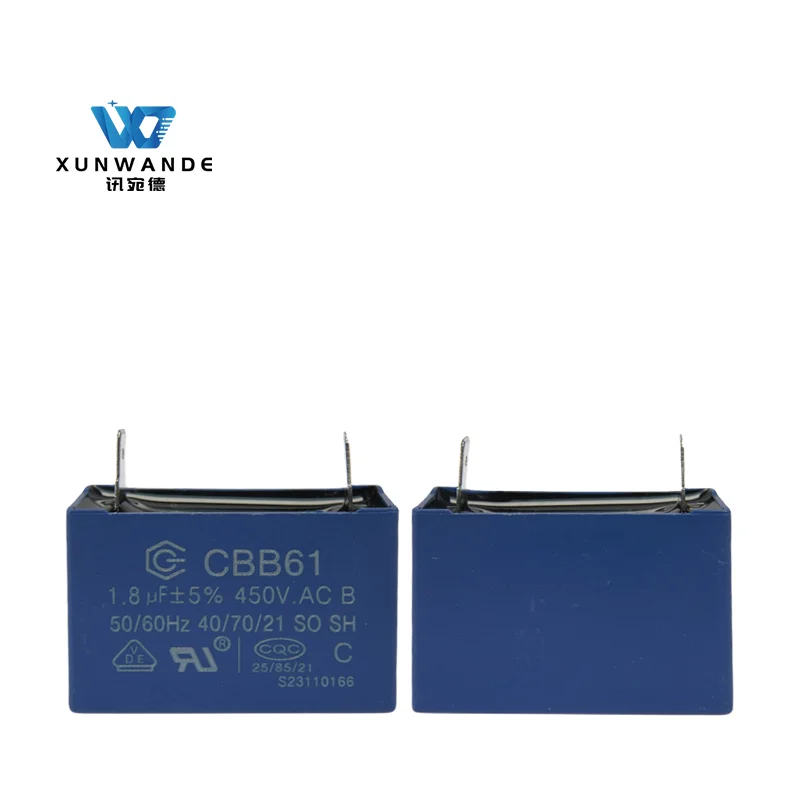

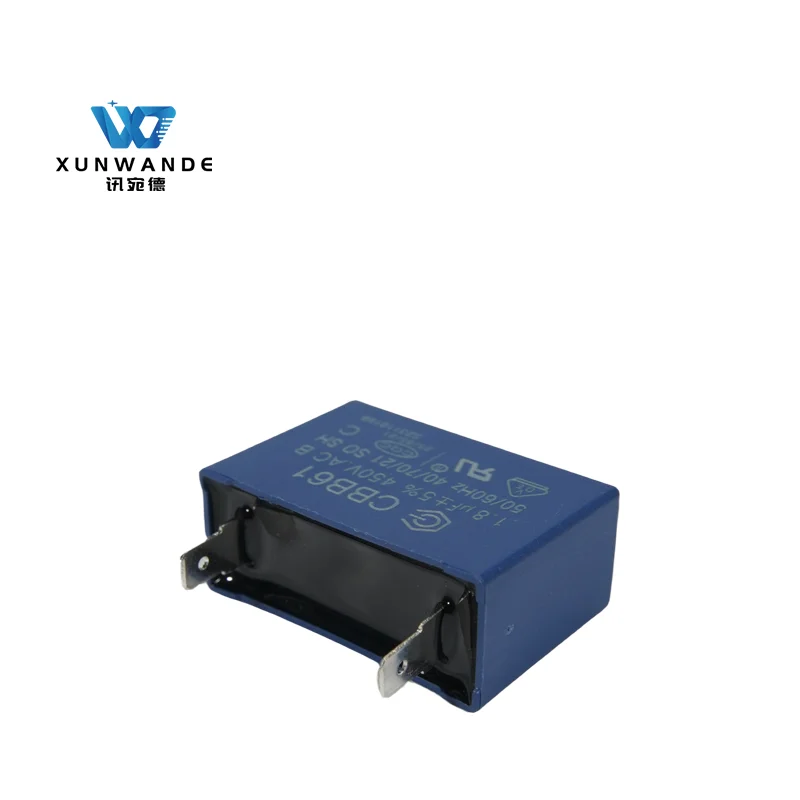

CBB61 450V 1.8UF Self-Healing Terminal Type Capacitor ROHS B-Class AC Motor Fan Capacitor 10000 Hours Capacitor

Xunwande

Introducing the CBB61 450V 1.8UF Self-Healing Terminal Type Capacitor from Xunwande - the perfect companion for your AC motor fan. This capacitor boasts a B-class rating and has a long-lasting lifespan of up to 10, 000 hours.

Designed to facilitate the smooth functioning of your AC motor fan, this capacitor provides reliable and consistent performance. Its self-healing mechanism ensures that it can protect itself from damage, thus enhancing its durability and longevity.

This capacitor comes with terminal-type connectors for easy installation and ensures a secure connection for stable performance. And it's also Xunwande ROHS compliant, which means it meets all the required standards for environmental safety.

The CBB61 450V 1.8UF Self-Healing Terminal Type Capacitor is suited for use in a wide range of applications, including HVAC systems, power generators, and other equipment that requires reliable and efficient performance. Its compact design and lightweight make it easy to handle and install, thereby saving you both time and effort.

And when it comes to quality, we don't compromise. We manufacture this capacitor with high-grade materials that are specially chosen for their performance and reliability. That means you can trust us to deliver a premium quality product that meets your expectations.

So, whether you're carrying out repairs or maintenance on your AC motor fan, the CBB61 450V 1.8UF Self-Healing Terminal Type Capacitor is the perfect choice. It comes from Xunwande, a trusted brand that values quality, reliability, and innovation.

this capacitor is a high-performance, long-lasting, and cost-effective solution for your AC motor fan. With its self-healing mechanism, terminal-type connectors, ROHS compliance, and premium quality, the CBB61 450V 1.8UF Self-Healing Terminal Type Capacitor is a must-have for any technician looking to deliver reliable and efficient performance in their work. Order yours today and let Xunwande help you take your AC motor fan's performance to the next level.

Products Description

Product Paramenters

Common Dimension                                            Unit: mm
Rated Cap	250VAC	350VAC	400VAC	450VAC	500VAC
		L*W*H	L*W*H	L*W*H	L*W*H	L*W*H
1.0UF	32*12*22	32*10*20	——	37*11*22	37*12.5*22
1.2UF	32*12*22	——	32*12*22	37*11*22	37*13.5*24
1.5UF	32*12*22	——	37*11*22	37*13.5*24	——
1.8UF	32*12*22	——	——	37*15*25	——
2.0UF	32*12*22	——	37*13.5*24	37*15*25	37*17*28
2.2UF	32*12*22	——	——	37*17*28	——
2.5UF	32*12*22	37*15*25	37*15*25	37*15*25	——
2.8UF	32*12*22	——	——	37*19*30	——
3.0UF	32*12*22	37*17*28	38*17*28	37*18.5*29	47*16*33
3.2UF	——	——	——	37*19*30	——
3.5UF	37*12.5*22	——	——	38*19.5*31	——
3.8UF	——	——	——	37*19*30	——
4.0UF	37*12.5*22	37*18.5*29	37*18.5*29	47*17*31	47*19.5*33
5.0UF	37*13.5*24	——	38*19.5*31	48*22*35	47*23*35
6.0UF	37*15*25	——	——	48*22*35	47*24*37
8.0UF	37*17*28	——	48*22*35	47*27*37	58*26*38
10UF	38*19.5*31	——	——	58*26*38	——
12UF	47*17*31	——	——	59*30*42	——
15UF	47*20*33	——	——	58*32*43	——
20UF	48*35*22	——	——	68*30*45	——

Product Application

Company Profile

Capacitor

Exhibition

FAQ

1: What is the principle of explosion-proof safety film capacitor?

The metallized electrodes adopt tiny fuses structure. If there is any failure during capacitor operation, the power supply is automatically cut off by disconnecting the micro-fuse. In this way, the failure can be       prevented and self-safety protection realized.

2: What is ROHS?

RoHS: the Restriction of the use of certain hazardous substances in electrical and electronic equipment. The regulation is aEuropean Union(EU) ban on the use of six hazardous substances in electronic products entering Europe. in the RoHS standard, the maximum limits of six hazardous substances are: lead (Pb) mercury (Hg) hexavalent chromium(Cr6+) poly-brominated biphenyls(PBB) poly-brominated diphenyl ethers (PBDE) maximum allowable content of 0.1%(1000ppm) cadmium (CD) is 0.01%(100ppm) This limit is the legal basis for determining whether a product complies with the RoHS directive.

3: The Common Installation Methods of Fan Capacitor

XWD ac motor capacitors are used for starting. running and adjusting speed. XWD-Capacitor
are widely applied in table tans, floor fans ceiling fans, wall fans, luxury ceiling fans, exhaust fans, extractor fans, heater, smash paper machine, turbine, dehumidifier, etc. Noted: Since the capacitor is made of plastic material, improper installation of the capacitor can cause the plastic ear to break. Therefore. the customer should pay attention to the URYU, screw, hole position to maintain vertical state during the fan capacitor installation.
