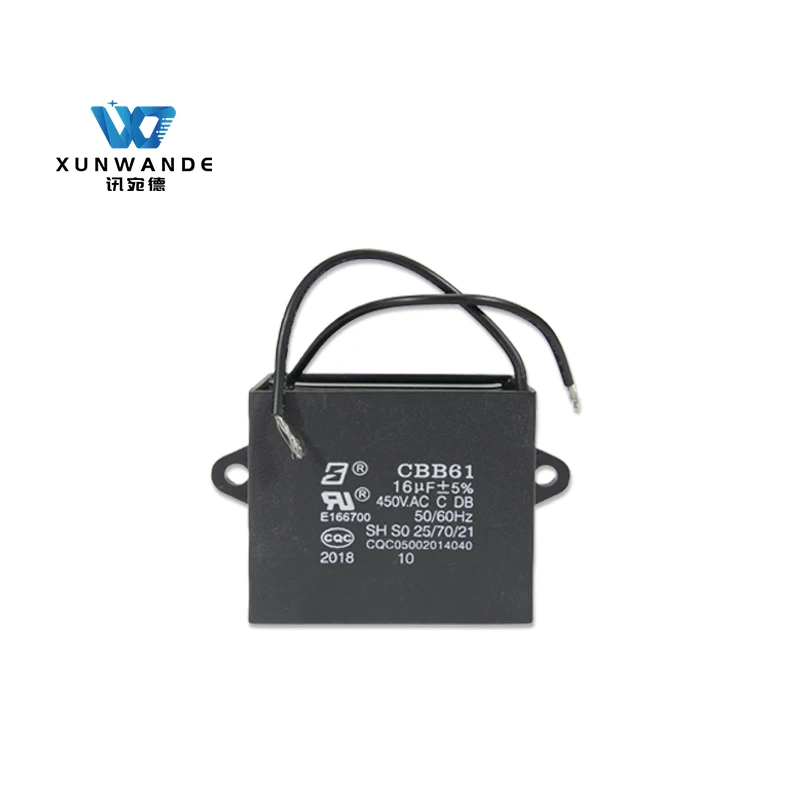

CBB61 450V 16UF fan capacitor two pvc wires Line length 100mm 3000hours SH middle double lug 25/70/21

Introducing, the CBB61 450V 16UF fan capacitor by Xunwande, the perfect solution for your electrical needs! This high-quality capacitor is designed to last you up to 3000 hours, providing a reliable and long-lasting performance.

The capacitor features two PVC wires with a line length of 100mm, allowing for easy installation and flexibility in use. The wires are crafted using durable materials, ensuring a secure and sturdy connection that won't break or snap easily over time.

This capacitor is equipped with an SH middle double lug system, which is specifically designed to provide maximum efficiency and stability. The system offers a significant improvement compared to other lug systems commonly used in electrical capacitors.

The CBB61 450V 16UF fan capacitor has a capacity of 16UF and can withstand up to 450V, making it a versatile choice for various electrical applications. The capacitor is also equipped with a reliable 25/70/21 double lug system that provides improved performance and overall efficiency.

Whether you need a capacitor for a fan, air conditioner, or other electrical equipment, the CBB61 450V 16UF fan capacitor by Xunwande is the perfect choice. With its high-quality construction and durable design, you can trust this capacitor to provide reliable and efficient performance for years to come.

The CBB61 450V 16UF fan capacitor is an excellent choice for anyone looking for a long-lasting and reliable capacitor that can handle a wide range of electrical applications. With its robust construction and advanced features, it is sure to provide you with the performance you need to get the job done. Order now and experience the difference that Xunwande's high-quality capacitors can make in your electrical systems

Products Description

Product Paramenters

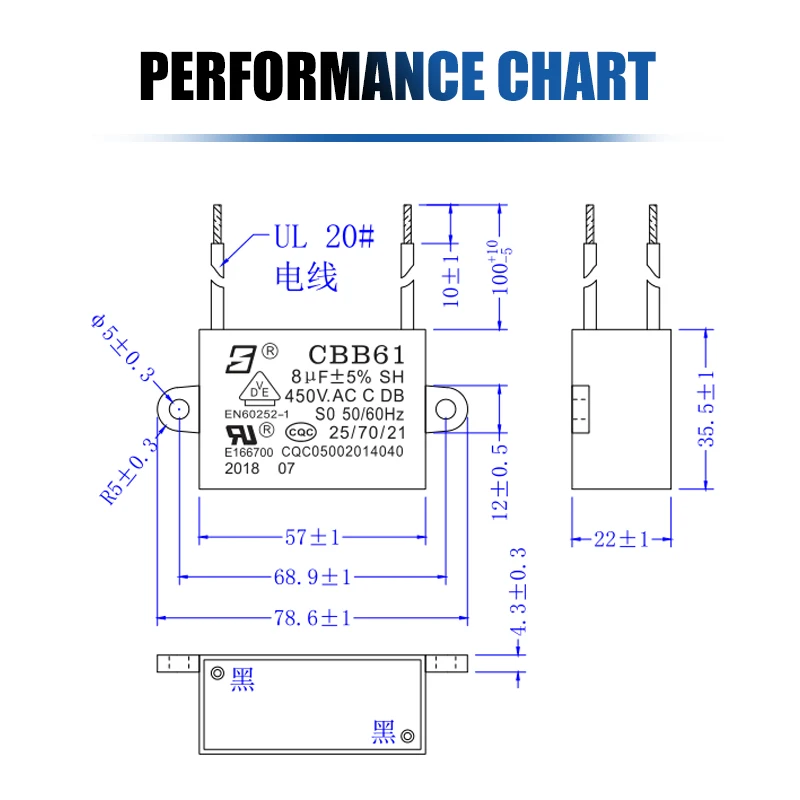

Common Dimension                                            Unit:mm
Rated Cap	250VAC	350VAC	400VAC	450VAC	500VAC
		L*W*H	L*W*H	L*W*H	L*W*H	L*W*H
1.0UF	32*12*22	32*10*20	——	37*11*22	37*12.5*22
1.2UF	32*12*22	——	32*12*22	37*11*22	37*13.5*24
1.5UF	32*12*22	——	37*11*22	37*13.5*24	——
1.8UF	32*12*22	——	——	37*15*25	——
2.0UF	32*12*22	——	37*13.5*24	37*15*25	37*17*28
2.2UF	32*12*22	——	——	37*17*28	——
2.5UF	32*12*22	37*15*25	37*15*25	37*15*25	——
2.8UF	32*12*22	——	——	37*19*30	——
3.0UF	32*12*22	37*17*28	38*17*28	37*18.5*29	47*16*33
3.2UF	——	——	——	37*19*30	——
3.5UF	37*12.5*22	——	——	38*19.5*31	——
3.8UF	——	——	——	37*19*30	——
4.0UF	37*12.5*22	37*18.5*29	37*18.5*29	47*17*31	47*19.5*33
5.0UF	37*13.5*24	——	38*19.5*31	48*22*35	47*23*35
6.0UF	37*15*25	——	——	48*22*35	47*24*37
8.0UF	37*17*28	——	48*22*35	47*27*37	58*26*38
10UF	38*19.5*31	——	——	58*26*38	——
12UF	47*17*31	——	——	59*30*42	——
15UF	47*20*33	——	——	58*32*43	——
20UF	48*35*22	——	——	68*30*45	——

Product Application

Company Profile

Capacitor

Exhibition

FAQ

1: What is the principle of explosion-proof safety film capacitor

The metallized electrodes adopt tiny fuses structure. If there is any failure during capacitor operation, the power supply is automatically cut off by disconnecting the micro-fuse. In this way, the failure can be prevented and self-safety protection realized.

2: What is ROHS?
    RoHS: the Restriction of the use of certain hazardous substances in electrical and electronic equipment. The regulation is a European Union(EU) ban on the use of six hazardous substances in electronic products entering Europe. in the RoHS standard, the maximum limits of six hazardous substances are: lead (Pb). mercury (Hg), hexavalent chromium(Cr6+) poly-brominated biphenyls(PBB). poly-brominated diphenyl ethers PBDE maximum allowable content of 0.1% 1000ppm cadmium (CD) is 0.01% 100ppm. This limit is the legal basis for determining whether a product complies with the RoHS directive

3: The Common Installation Methods of Fan Capacitor
   XWD ac motor capacitors are used for starting. running and adjusting speed. XWD-Capacitor
are widely applied in table tans, floor fans ceiling fans, wall fans, luxury ceiling fans, exhaust fans, extractor fans, heater, smash paper machine, turbine, dehumidifier, etc. Noted: Since the capacitor is made of plastic material, improper installation of the capacitor can cause the plastic ear to break. Therefore, the customer should pay attention to the URYU, screw, hole position to maintain vertical state during the fan capacitor installation.
