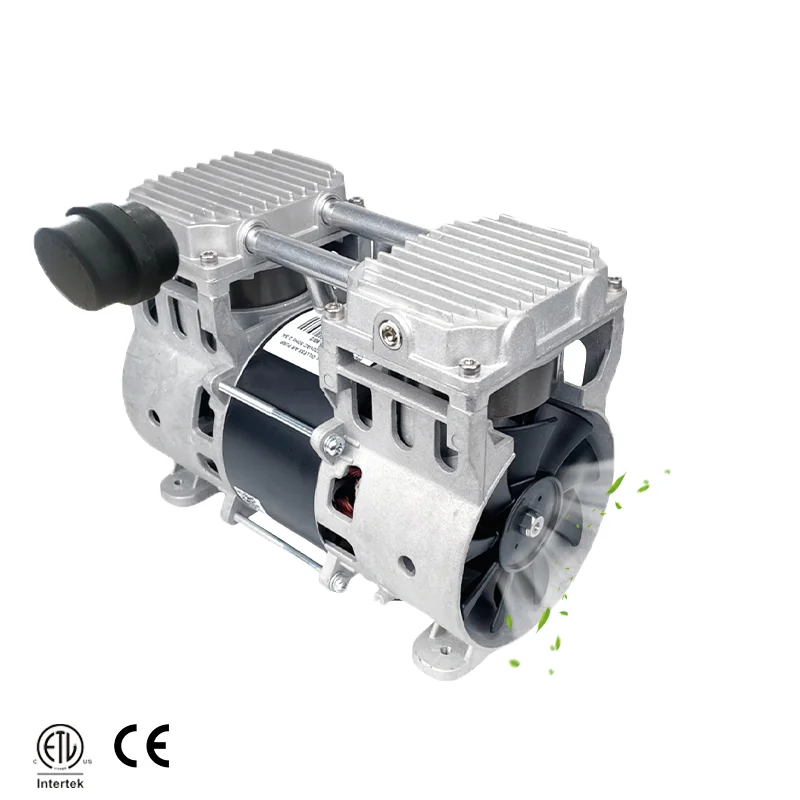

The Xunwande’s 120L/Min Single Stage Vacuum Pump is an efficient and reliable air pump that can be used for medical vacuum systems. With a flow rate of 120L/Min, this pump can quickly and effectively remove air from a system, creating a vacuum that is necessary for many medical applications.
One of the key features of this vacuum pump is its single stage design, which means that it is able to operate without the need for multiple stages of compression. This makes it more compact and cost-effective, while still providing the necessary suction power for many medical procedures.
The Xunwande’s 120L/Min Single Stage Vacuum Pump is also built to last, with high-quality materials and construction that ensures durability and reliability. Its corrosion-resistant design makes it suitable for use in harsh environments, and its low-noise operation means that it can be used in a variety of settings without causing disruption.
This vacuum pump is also easy to use, with a simple on/off switch and clear indicator lights that show whether it is operating correctly. It is designed to be energy efficient, with a low power consumption that helps to reduce operating costs over time.
In addition to its medical applications, the Xunwande’s 120L/Min Single Stage Vacuum Pump can be used in a variety of other settings, such as industrial applications where vacuum suction is required. Its versatility makes it a valuable addition to any workplace, providing reliable performance and consistent results.
If you are looking for a high-quality vacuum pump for medical or industrial use, the Xunwande’s 120L/Min Single Stage Vacuum Pump is an excellent choice. With its efficient and reliable design, low noise operation, and easy-to-use features, it provides the suction power and performance that you need, all while being cost-effective and energy efficient
Performance Data | ||||
Head configuration | Pressure parallel flow | Pressure parallel flow | ||
Nominal voltage/frequency | 110V/60Hz/1 | 220V/50Hz/1 | ||
Maximum Current | 5 A | 2.5 A | ||
Maximum power | 420 W | 420 W | ||
Maximum flow | 120L/min | 120L/min | ||
Maximum vacuum degree | -92KPa | -92 KPa | ||
Speed at rated load | 1650 rpm | 1400 rpm | ||
Noise | <55 db=""> | <55 db=""> | ||
Maximum pressure restart | 0 PSI | 0 PSI | ||
Electrical Data | ||||
Motor type [Capacitance] | P.S.C(35uF) | P.S.C 12uF | ||
Motor insulation class | B | B | ||
Thermal switch [Open temperature] | Thermally protected 145℃ | Thermally protected 145℃ | ||
Line lead wire color, gauge | White(hot), black(neutral), 18AWG | Brown(hot), blue(neutral), 18AWG | ||
Capacitor lead wire color, gauge | Blue, blue, 18 AWG | Black, black, 18 AWG | ||
General Data | ||||
Operating ambient air temperature | 50°to 104°F - 10℃ to 40℃ | 50°to 104°F - 10℃ to 40℃ | ||
Safety certification | ETL | ETL | ||
Net weight | 8.5 Kg | 8.5 Kg | ||
FAQ |
01 Are you manufacturer or trading company |
We are a multi specialty supplier, located in Changzhou city, Jiangsu province and Suqian city, Jiangsu province. |
02 Can we use our own Logo and design |
Yes, we supply OEM service and customized design, DIY your carton and put your logo or brand on the compressor. We'll provide 100%qualified products to support your brand. |
03 Can I buy the sample to test |
We are pleased to send the samples for your evaluation, And the samples cost can be refundable when your order is bulk order. |
04 Do you have test records of every pump |
We will inspect products three times before shipment and every pump have the test records. We will keep these test records to our quality traceability system about 3-5 years. |
05 To ask a quote, what information should I provide and when will i get it |
Please offer the product type, quantity and specification of the products such as voltage, power, air tank capacity and etc. Then we will reply your inquiry within 2-3 hours. |
06 Do you sale the accessories of the compressor |
Yes, we provide bearing, cup seal capacitor and etc. Please feel free to contact if there's additional you needs. |
